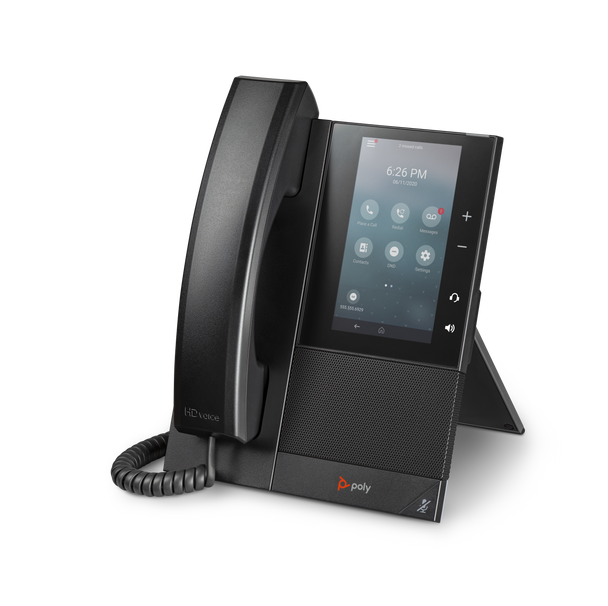

CCX 500 Business Media Phone. Open SIP. Ships with NA power supply

MID-RANGE BUSINESS MEDIA DESK PHONE WITH COLOR TOUCHSCREEN.

• Headset or handset—your choice with 5” color touchscreen
• Hear every nuance with award-winning Poly audio technology
• Powerful chipsets support next-generation features like NoiseBlock AI
• Bluetooth and two (2) USB ports (1 x Type A, 1 x Type C) to connect a headset—and more

SIMPLE.
INTUITIVE.
POWERFUL.

EVERYTHING YOU NEED IN A DESK PHONE

CCX 500 is destined to be the “office standard” in the next-generation CCX family of phones. With a 5-inch color touchscreen, Bluetooth, and Android 9-powered performance, this phone takes audio quality even further. And you can choose a phone with a handset or install it with your favorite headset with the new, modern “no handset” model.

Meet the new standard in desktop touch screen phones. The Poly CCX 500 Business Media Phone has workers feeling confident they’ll sound professional on every call. No word or inflection is missed, thanks to legendary audio quality, Poly HD Voice, and Poly Acoustic Clarity. And let’s hear it for Poly Acoustic Fence. It eliminates background noise to keep calls quiet wherever it’s noisy—like open offices and call centers.
By design, the phone is simple and intuitive to use—with one-touch-access to your contacts and meetings. So users can get right to work. IT will be a fan too. Robust provisioning and management capabilities take the headache out of telephony deployment and support. Looking for usability options? You got it. Choose a headset or handset. More options, more happiness.

• Models choices supporting Open SIP or native Microsoft Teams
• Color touchscreen operation with 5-inch multi-touch LCD display
• Hear every nuance with Poly HD Voice and Poly Acoustic Clarity
• Eliminate distracting background noise with Poly Acoustic Fence
• Full duplex speakerphone operation with world-class echo cancellation
• Powerful chipsets to support next-generation features
• Easy to install anywhere with optional Wi-Fi dongle (coming soon)
• Headset options to suit any style (Bluetooth®, USB, RJ9)

BENEFITS

• Conversations stay on track. Hear every nuance with the industry-leading sound quality, featuring Poly HD Voice.
• Eliminate distracting background noise at the source with exclusive award-winning Poly Acoustic Fence technology
• Contacts and meetings are easily accessible, one tap away on a color touchscreen
• Easy for IT to manage with robust provisioning and management of telephony deployment and support
• Multiple headset options are available to suit any worker’s style—in addition to the traditional handset

SPECIFICATIONS

USER INTERFACE FEATURES
• Gesture-based, multitouch-capable touchscreen
• 5-inch color LCD (720 x 1280 pixel)
• 9:16 aspect ratio
• Screensaver
• On-screen virtual keyboard
• Voicemail support
• Adjustable base height
• One USB type-A port (2.0 compliant) for media and storage applications
• One USB Type-C port (2.0 compliant) for media and storage applications
• Integrated Bluetooth 4.2
• Unicode UTF-8 character support
• Adjustable font size selection (regular, medium, large)
• Normal and dark mode
• Multilingual user interface1 including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish
AUDIO FEATURES
• Poly HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
• Poly Acoustic Clarity technology provides full duplex conversations, acoustic echo cancellation, and background noise suppression
• TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
• Frequency response—100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
• Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in-band)
• Low delay audio packet transmission • Adaptive jitter buffers
• Packet loss concealment
• OPUS support
HEADSET AND HANDSET COMPATIBILITY
• Dedicated RJ-9 headset port
• Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
• Compliant with ADA Section 508 Subpart B 1194.23 (all)
• Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
• Compatible with commercially available TTY adapter equipment
• USB headset support
• Bluetooth headset support
NETWORK AND PROVISIONING
• SIP protocol support
• SDP
• IETF SIP (RFC 3261 and companion RFCs)
• Two-port gigabit Ethernet switch
• 10/100/1000Base-TX across LAN and PC ports
• Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
• Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
Order headset separately
• FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
• Provisioning and call server redundancy supported1
• QoS Support—IEEE 802.1p/Q tagging
• (VLAN), Layer 3 TOS, and DHCP
• VLAN—CDP, DHCP VLAN discovery, LLDP- MED for VLAN discovery - Network address translation support for static configuration and “keep-alive”
• SIP signaling
• RTCP and RTP support
• Event logging
• Syslog
• Hardware diagnostics
• Status and statistics reporting • IPv4 and IPv6
• TCP
• UDP
• DNS-SRV
SECURITY
• 802.1X authentication and EAPOL media encryption via SRTP
• Transport layer security (TLS) • Encrypted configuration files • Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables
