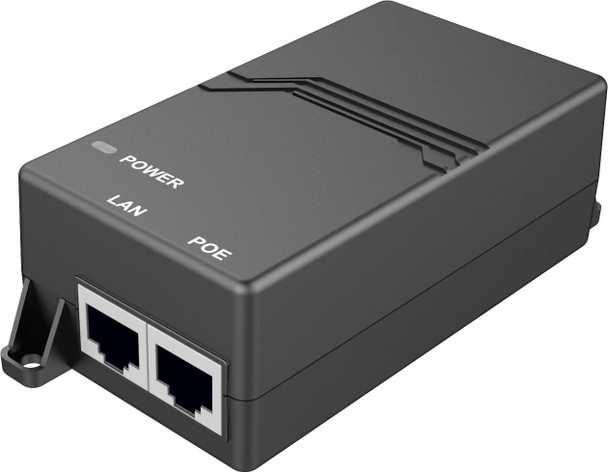

PoE Injector for UC-2, UC-P8, and UC-P10 Series Devices

(No reviews yet) Write a Review
SKU:
UCA-PWE-UC-2/UC-P8/P10
  • PoE Injector for UC-2, UC-P8, and UC-P10 Series Devices

Description

The UCA‑PWE‑UC‑2/UC‑P8/P10 is a Power over Ethernet (PoE) power source for optional use with Crestron® UC-2, UC-P8, and UC-P10 series devices in environments where a PoE infrastructure is not available.

The UCA‑PWE‑UC‑2/UC‑P8/P10 can be mounted at any convenient location up to 100 meters (328 feet) from the device.

Output Rating
500 mA maximum @ 48VDC nominal
Power Requirements
100-240VAC, 50/60 Hz
Connectors
LAN (1) 8-wire RJ-45, female;
10BaseT/100BaseTX /1000 BaseTX Ethernet port
LAN PoE (1) 8-wire RJ-45, female
Main Power Input (1) IEC 60320 C6 socket
LED Indicators
POWER (1) Blue LED indicates power is available
Environmental
Temperature -4° to 122°F (-20° to 50°C)
Humidity 10% to 90% RH (non‑condensing)
Construction
Black plastic, surface mount
Dimensions
Height 1.38 in (35.05 mm)
Width 2.10 in (53.34 mm)
Depth 4.44 in (112.77 mm)
Weight
4.7 oz (133 g)
