Description

Dual HDMI/DVI to USB 3.0 Multi I/O Capture

OPTIMIZE your video collaboration and webcast with two cameras.
Works with Teams®, Zoom®, Webex®, Barco ClickShare Conference, GoToMeeting®, Hangouts®, etc.
Reduces hardware complexity and connections to your computer.

Easy, No Drivers, No Setup !
Versatile !
Compatible with all Apps !

SHARE2 features a mixer to embed two video sources into one single stream. This is an important asset if your application only supports one video interface, like Skype®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.

The device can be controlled by an application on the host side using our USB HID interface or with RS-232. You can also use the keypad on top of the device to control it manually.

  • Mixer feature : Hardware mixer into a single USB 3.0 interface
  • Control interface : LAN, RS-232, USB (Software upgrade: Crestron Serial & IP modules)
  • Local and remote keypad
  • HDMI, DVI, VGA or CVBS video input connectors. [VGA and CVBS are available using an adapter]
  • Line level stereo audio support
  • Digital Fluid technology: Internal frame buffers maximize frame rate with any host
  • Hardware-based color space and sampling conversion
  • Automatic scaling and frame rate conversion
  • Customizable video processing functions
  • Image controls: Brightness, contrast, saturation and hue settings
  • Supports multiple devices on the same host
  • Compatible with Windows, Mac OSX and Linux
  • Compatible with Barco ClickShare Conference

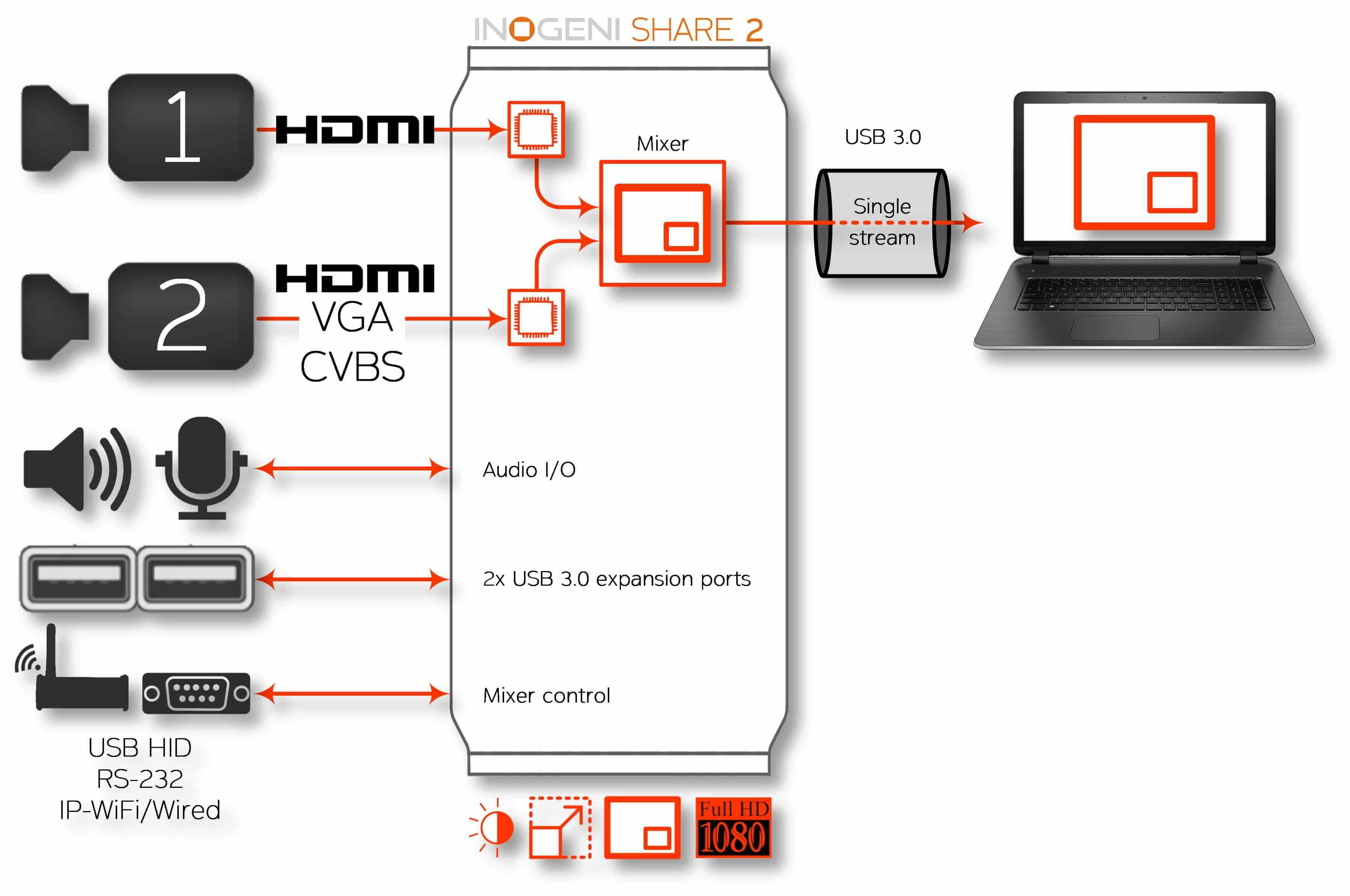

Block diagram

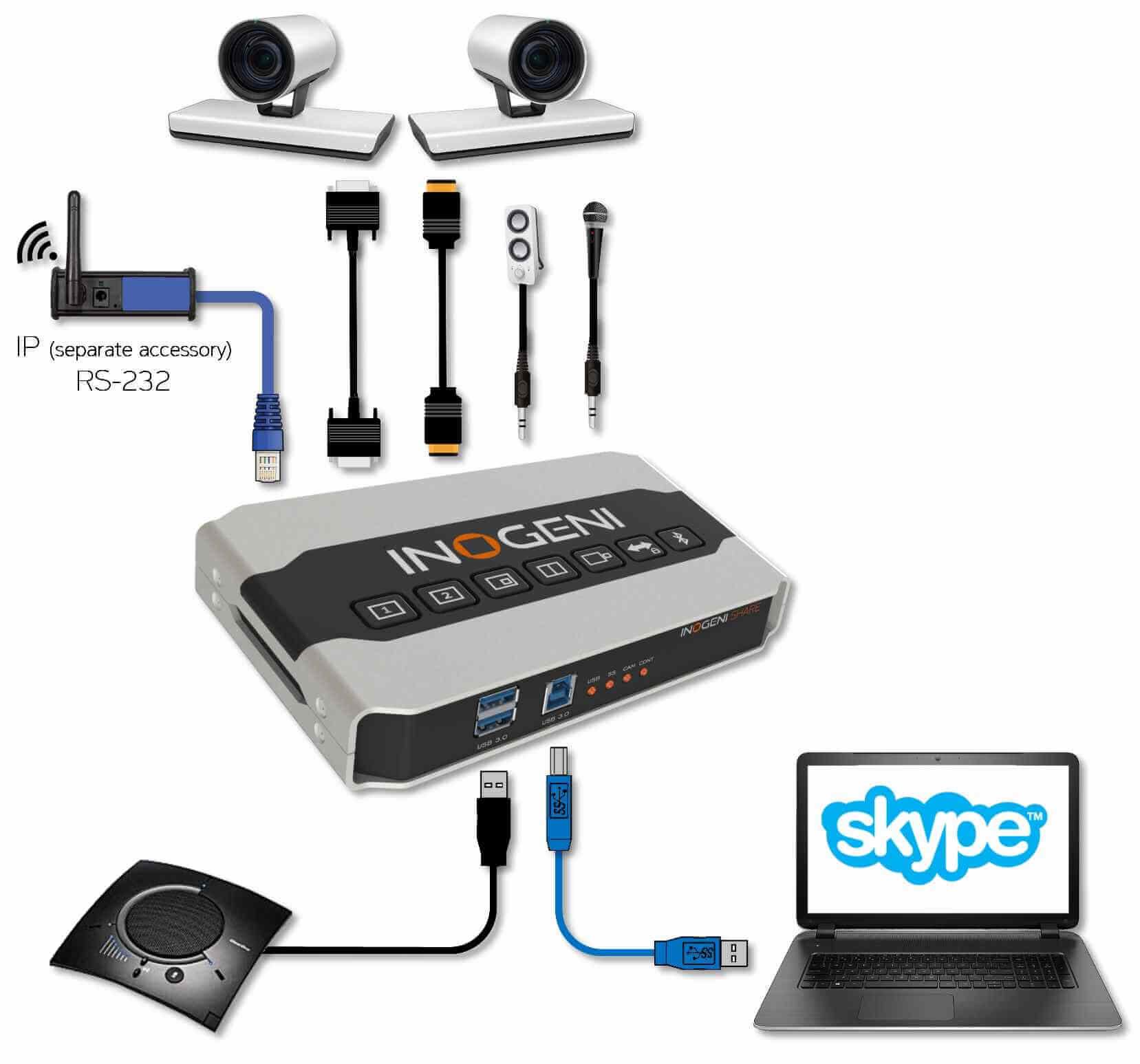

Connectivity


OEM and system developers friendly

The device may be controlled by the Control App or via an included API so you can design your own. You can read the sources status, presence, format, modify the EDID, update the firmware, etc. and ask for custom functionalities.

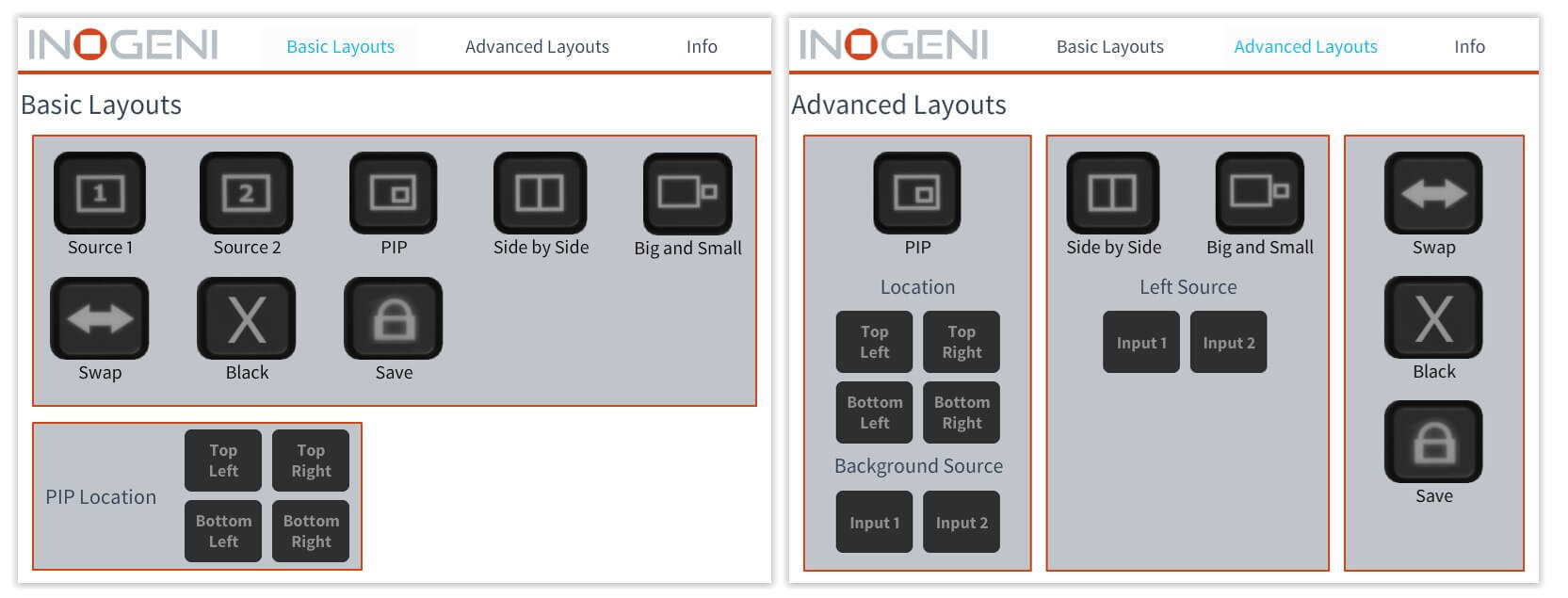

You can also get Crestron modules in order to control the device using the LAN or serial interface. You can get a look at the interface of the Crestron module below. Visit the Software Update page under the INOGENI SHARE 2 section for more details.

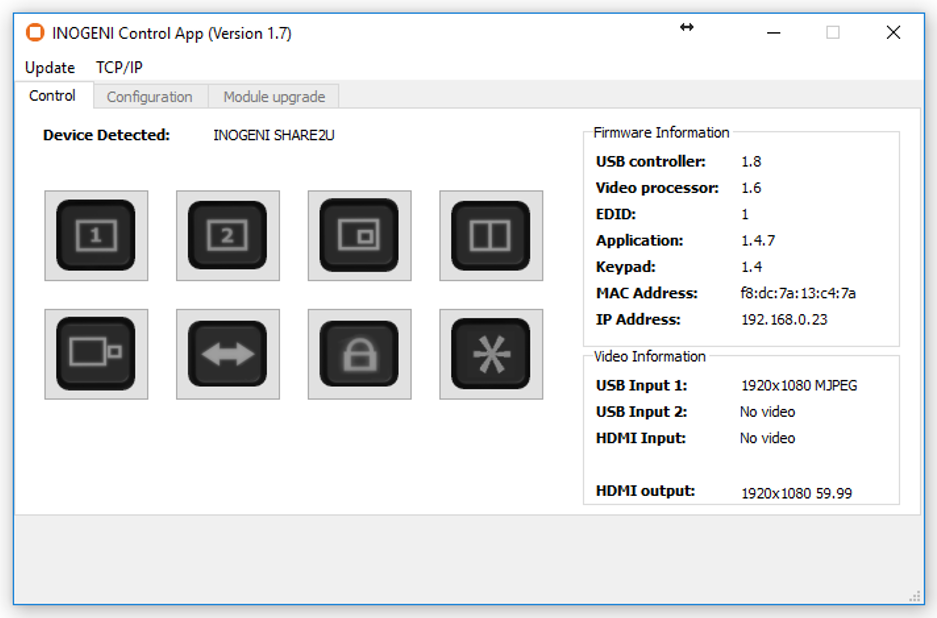

Control App

The device has its own application in order to control the Mixer configuration using the USB HID or the LAN interfaces. You can also monitor the firmware versions installed on the device and the status of the Camera and Content inputs. You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand. Visit the Software Upgrade page under the INOGENI SHARE2 section for more details.


SHARE Remote

When the SHARE2 or SHARE2U is positioned in an inconvenient area of the room because of your computer and video source cables, you can connect the SHARE2 wired remote and change images from a better place in the room.
