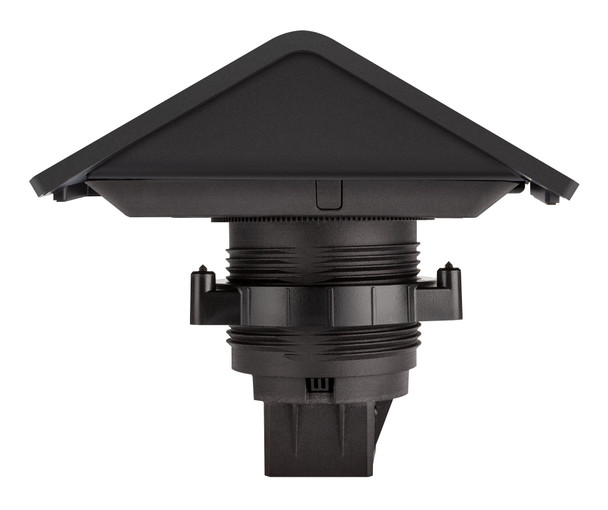

Swivel Mount for Crestron Flex Tabletop Small Room Conference System

(No reviews yet) Write a Review
SKU:
UCA-SMK-UC2
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System
  • Swivel Mount for Crestron Flex Tabletop Small Room Conference System

Description

Allows the Crestron Flex Tabletop Small Room Conference System to be permanently mounted to a tabletop. Provides up to 170° swivel range.

The UCA‑SMK‑UC2 is a low-profile swivel mount accessory for the Crestron Flex Tabletop Small Room Conference Systems (UC‑MM30‑T, UC‑MM30‑TA, and UC‑MM30‑Z series). It provides a means for permanently mounting the device to a tabletop surface while retaining the ability to rotate it up to 170° for optimal positioning.

The swivel mount may be installed on any flat, level surface with a thickness of 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum. Wiring is routed through the center of the swivel mount, passing beneath the mounting surface for a completely hidden appearance.

Swivel Range
170° total;
- 85° and +85°
Construction
Material Black polycarbonate-ABS
Mounting Tabletop mount, fastened by a locking nut;
Surface thickness: 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum;
4 in. (102 mm) diameter mounting hole cutout (template included)
Dimensions
Height Without the UC‑2 mounted:
6.04 in. (153 mm)
Above the table: 1.20 in. (30 mm)
Below the table: 4.07 in. (103 mm)

With the UC‑2 mounted:
8.16 in. (207 mm)
Above the table: 3.34 in.(85 mm)
Below the table: 4.07 in. (103 mm)
Width Without the UC‑2 mounted:
Above the table: 5.39 in. (137 mm)
Below the table: 5.18 in. (131 mm) with the locking ring

With the UC‑2 mounted:
Above the table: 7.17 in. (182 mm)
Below the table: 5.18 in. (131 mm) with the locking ring
Depth Without the UC‑2 mounted:
Above the table: 7.91 in. (201 mm)
Below the table: 5.18 in. (131 mm) with the locking ring

With the UC‑2 mounted:
Above the table: 9.61 in. (244 mm)
Below the table: 5.18 in. (131 mm) with the locking ring
