RoomMate + Tap IP Bundle

Logitech RoomMate and Tap IP Bundle

Logitech Tap IP - Meetings start with just one touch with Logitech Tap IP, a network-connected touch controller for Logitech room solutions. With clean cable management and a range of available mounts, Tap IP installs easily and stays up and running.

Logitech RoomMate - A purpose-built computing appliance for video conferencing rooms that uses cutting edge AI to leverage existing Logitech devices for simplified setup, management, and use with at scale deployment

SIMPLY DEDICATED

With computing power and video conferencing software together in a dedicated appliance, RoomMate makes it easy to deploy Zoom Rooms Appliances, Microsoft Teams Rooms on Android, and others with Logitech conferencecams like Rally Plus.

APPLIANCES GO LARGE

In your small and medium rooms, the all-in-one Rally Bar Mini and Rally Bar appliances offer exceptionally easy setup and management. Now, you can bring that same convenience to your large meeting rooms by deploying RoomMate together with Rally Plus, Logitech’s premium modular conference camera system for rooms with up to 46 seats.

POWER, WITH CONNECTIONS

In a sleek, low-profile form factor, Logitech RoomMate delivers all the power you need for HD video conferencing in rooms with one or two displays.

FLEXIBLE, NEAT, SECURE

Mount Logitech RoomMate out of sight and out of harm’s way while locking down cables to keep connections tight. The optional mount supports discreet installation and cable retention behind displays, inside cabinets, and under tables.

SIMPLE TO MANAGE

With your preferred dashboard such as Zoom Dashboard, Microsoft Teams Admin Center, and Logitech Sync, you can monitor and manage RoomMate together with the conference camera, touch controller, and other meeting room devices.

PACKAGE CONTENTS

• Logitech RoomMate
• Power supply
• AC cable
• VESA bracket
• Remote control
• User documentation

TECHNICAL SPECIFICATIONS

General

• Appliance mode: Supports compatible video conferencing software, including Zoom Rooms Appliances, Microsoft Teams Rooms on Android and additional video conferencing platforms
• Compatible devices: Logitech TAP IP, Logitech MeetUp, Rally Camera, Rally System, Rally Plus System

Interfaces

HDMI Out: 2
HDMI In: 1
USB 3.0: 3x Type A
Network: 0.04oz (1 g)0/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac (MIMO)

Power & Cables

Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
DC Cable: 5 ft (1.5 m)
AC Cable: 3.28 ft (1 m)

Environmental

Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70°C
Humidity: 10 to 95%

Security

Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
Device Security: Kensington Lock

MEETING ROOM TOUCH CONTROLLER WITH POE CONNECTIVITY

More than a meeting room controller, Logitech Tap IP helps you achieve a consistent and seamless user experience across your video conferencing deployment.

This purpose-built touch controller has just the right presence with a spacious 10.1” display and sleek, low profile. Take advantage of its single Power over Ethernet (PoE) connection and variety of mounting options to install the touch controller anywhere in the room. Prevent accidental disconnections thanks to built-in cable retention and strain relief, and be confident that each room stays ready for the next video meeting.

EASY TO USE

One-touch join: Easily start and join meetings with just one tap.
10.1” touch display: Spacious and responsive touch screen resists fingerprints for high legibility, and is sealed to protect components.
Motion sensor: Built-in motion sensor allows for always-on readiness when a user approaches, and saves power when idle.
Sleek, low profile: Comfortable 14° angle allows for easy viewing, while providing an unobtrusive presence in the room.

SIMPLE TO SET UP

Single PoE cable: One cable for both power and data means flexible placement anywhere in the room, untethered to the room system and without the need for long cable runs.

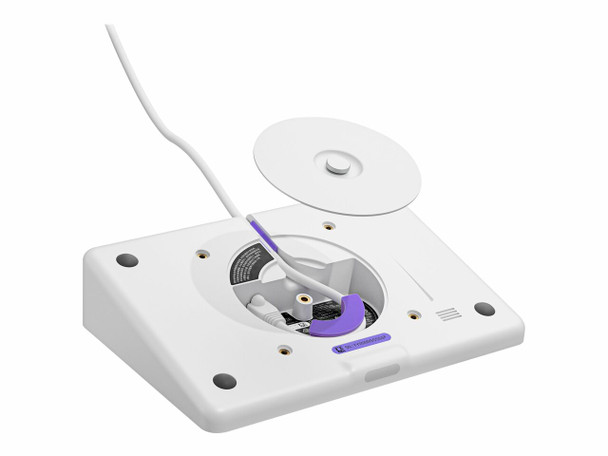

Clean cable management: Built-in cable retention and strain relief system hides the PoE cable entirely within its enclosure, and secures it to prevent unwanted disconnections.
Multiple mounting options: Secure Tap IP almost anywhere in the room with available Table, Riser, and Wall Mounts for convenient placement near room participants.

PICK YOUR PLATFORM

Tap IP can be configured with leading video conferencing services to deliver a seamless and consistent meeting experience across your deployment.

VIDEO MEETINGS FOR ANY ROOM

Easily transform meeting rooms into video collaboration spaces with Tap IP and Logitech room solutions. Start with pre- configured solutions that include video bars, conference cams, computes and other devices, and add scheduling panels, digital whiteboards, and accessories to power effective collaboration.

Fits rooms of virtually any shape or size

From inside the room to just outside, Logitech room solutions work with partner platforms to provide a seamless and consistent meeting experience.

Build your meeting rooms

Logitech room solutions include everything you need to build and customize video meeting rooms.

TECHNICAL SPECIFICATIONS

Screen

• Size: 10.1” (256.54 mm) diagonal
• IPS (In-Plane Switching)
• LCD Panel with LED Backlighting
• Resolution: 1280 x 800 resolution
• Touch: Capacitive, 10 points multi-touch
• Brightness: 400 nits
• Contrast: 1000:1
• Anti Fingerprint: Oleophobic coating
• Viewing angle: 85 degrees (U/D/L/R)
• Position angle: 14 degrees

GENERAL SPECIFICATIONS

• Integrated ultrasonic speaker
• Integrated PIR Motion Sensor
• Integrated accelerometer
• Integrated ambient light sensor
• 100 mm x 100 mm VESA FDMI
• Internal cable retention and strain relief system

COMPATIBILITY AND CERTIFICATIONS

• Logitech Tap IP is certified or compatible as a touch controller for video conferencing room solutions
• Microsoft Teams Rooms on Android on Logitech Rally Bar, Rally Bar Mini or Roommate
• Zoom Rooms (any)
• RingCentral Rooms™
• See www.logitech.com/support/tap-compatibility for the latest certification and compatibility updates.
• Logitech CollabOS platform
• Logitech Sync Remote Management

Power and Cables

• Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device*
• *Requires PoE enabled network or PoE Injector and ethernet cable (Not included)

PORTS AND INTERFACES

• Ethernet: 10/100 Mbps
• WiFi: 802.11a/b/g/n/ac
• Bluetooth 5.0

Environmental

• Operating Temperature: 0 to 40°C
• Stored Temperature: -40 to 70°C
• Humidity: 10 to 95%

Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Key Protection: Arm TrustZone, RPMP
• Device Security: Kensington Lock

PACKAGE CONTENTS

• Tap IP Touch Controller
• Documentation
